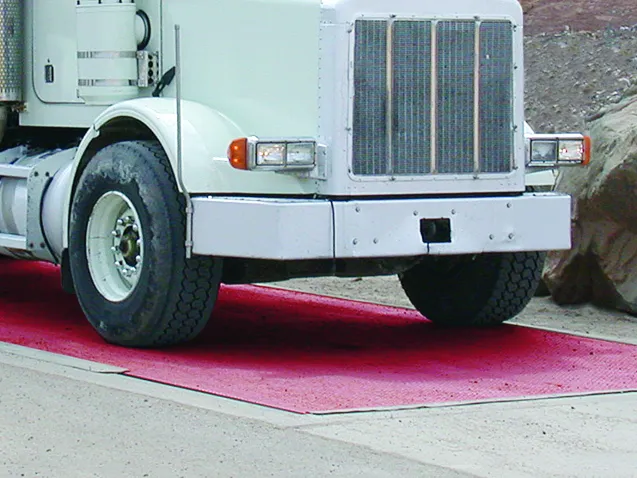

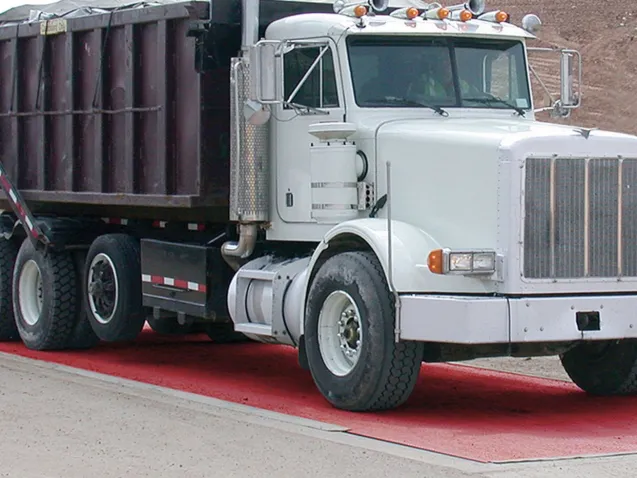

Jembatan Timbang PT dirancang untuk instalasi di mana ruang terbatas, skala Timbangan Truk SURVIVOR PT Series telah mendapatkan reputasi untuk memberikan kinerja berkualitas dalam aplikasi skala kendaraan jenis pit-type.
• Top access to load cells and junction box • 75,000 lb capacity load cells and pre-assembled mounts • Junction box(es) appropriate for number of load cells utilized • NTEP Certified 98-011 • 90,000 lb Concentrated Load Capacity (CLC) • 90,000 lb Dual Tandem Axle (DTA) • Up to 200,000 lb full scale capacity • 6 in reinforced concrete deck. • One 2 ft x 2 ft square manhole opening • Up to 42 ft section span • Three standard widths: 10 ft, 11 ft and 12 ft (available up to 14 ft, NTEP Certified)
